WELD ESTIMATING · VERSION 1.1.0

Filler Metal Order Planner

Estimate filler-metal requirements from weld geometry and turn the combined demand into separate whole-package ordering quantities for each filler product and diameter.

~~$79.99~~$49.99 Soft Launch PricePurchase workbook

Filler Metal Order Planner illustrated guide preview — Illustrative guide preview—not a completed customer estimate.

What is included

Inputs, guided checks, and documented outputs.

Separate whole-package quantities for each filler product and diameter
Optional verified NPS and schedule lookup for common pipe dimensions, with custom dimensions still available
Groove, fillet, centered curved-shell nozzle, and documented drawing-based takeoffs
Process-specific diameter choices for GTAW, SMAW, GMAW, FCAW, MCAW, and SAW wire

Filler Metal Order Planner illustrated user-guide preview 1 — Illustrative example from the supplied user guide.

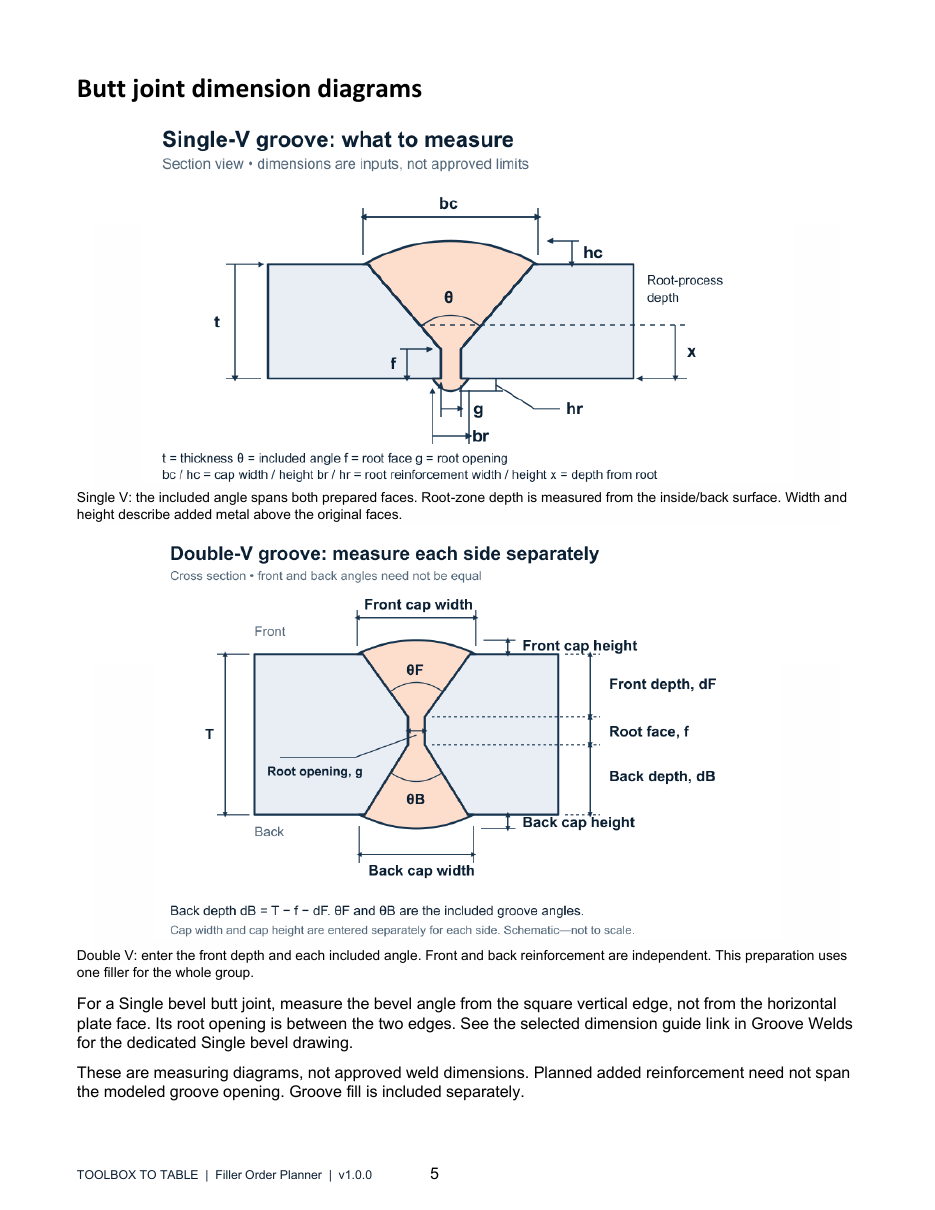

Filler Metal Order Planner illustrated user-guide preview 2 — Illustrative example from the supplied user guide.

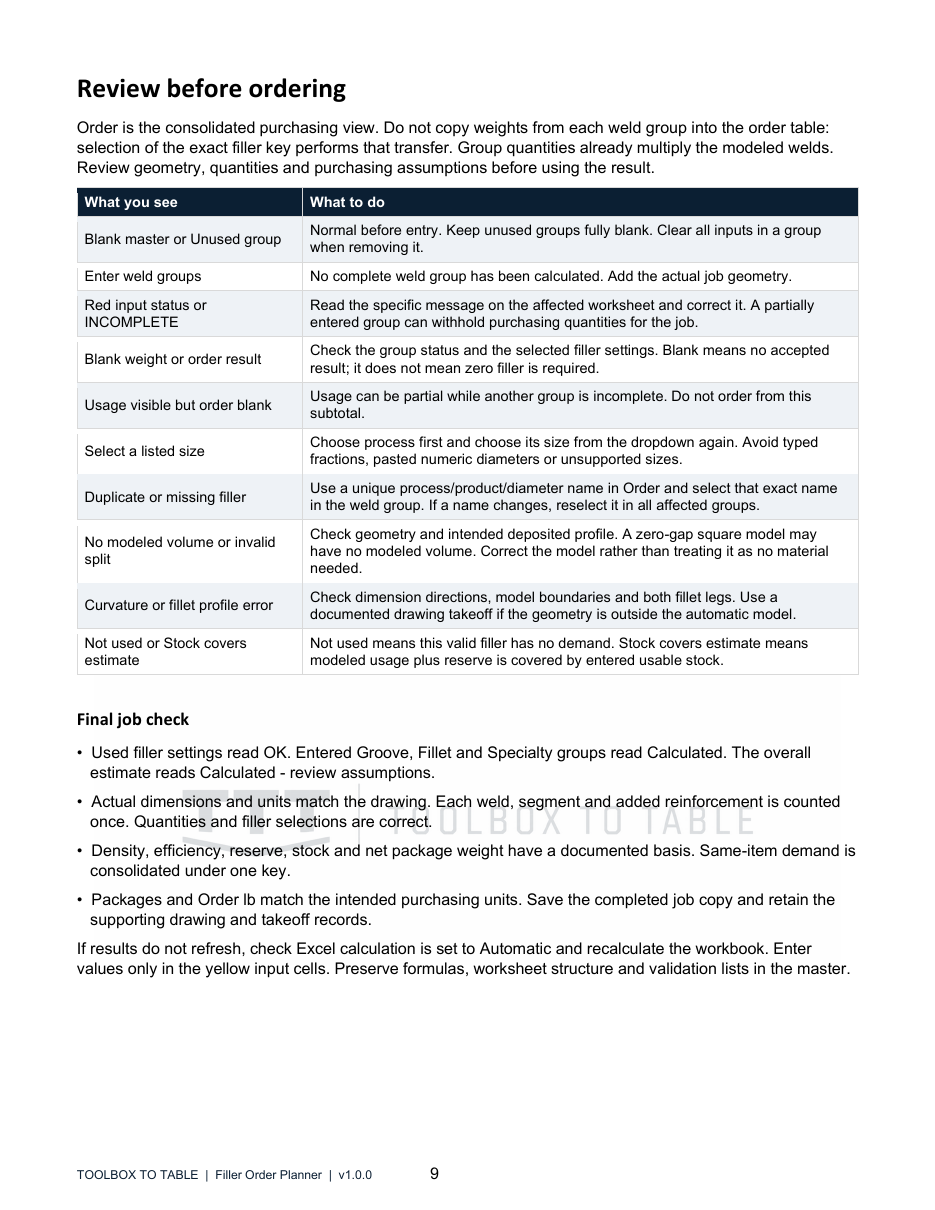

Filler Metal Order Planner illustrated user-guide preview 3 — Illustrative example from the supplied user guide.

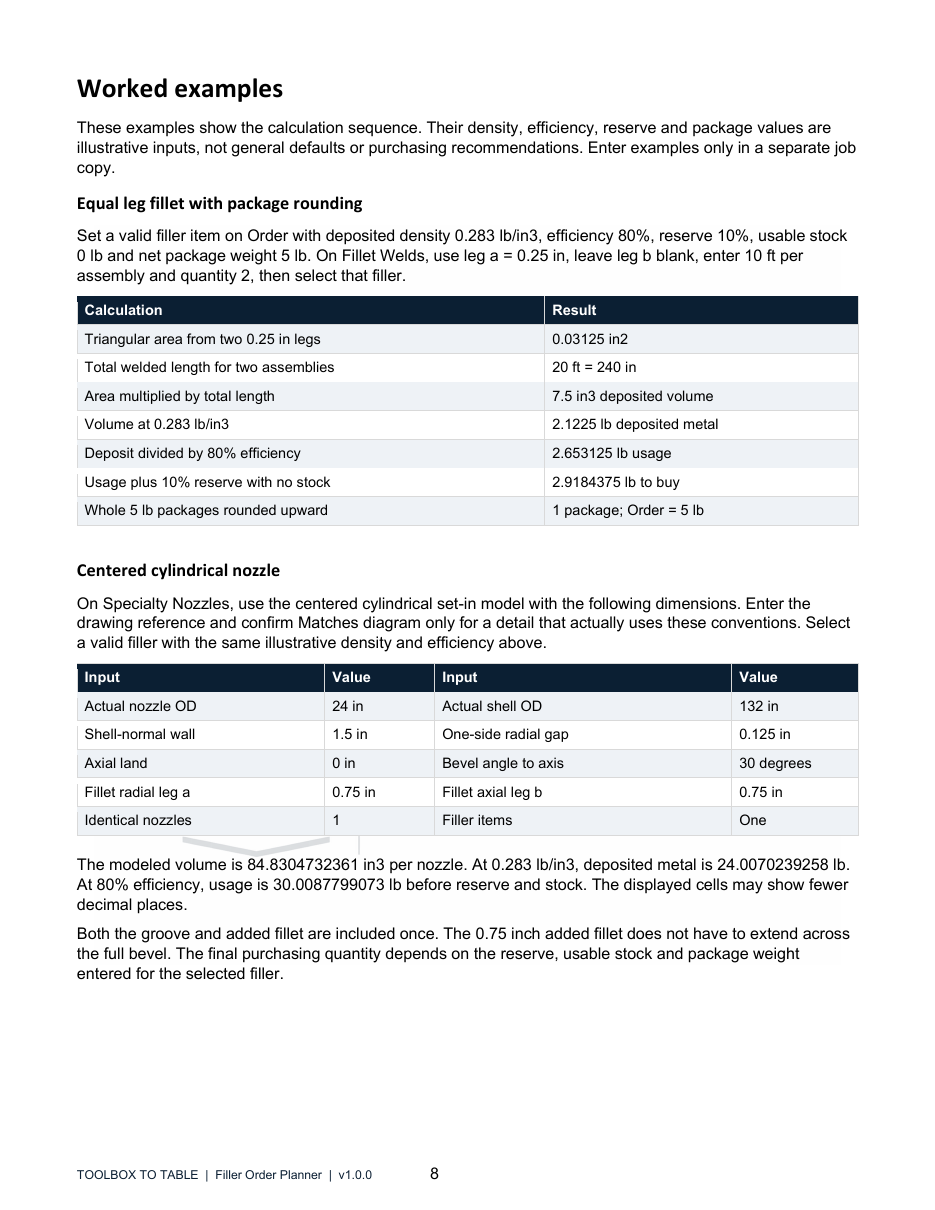

Filler Metal Order Planner illustrated user-guide preview 4 — Illustrative example from the supplied user guide.

Software and estimating limits

Tested only in Windows desktop Microsoft Excel; other spreadsheet applications and platforms have not been validated.
An estimating workbook—not a joint-design, WPS qualification, filler-selection, or approval tool.
Pipe lookup covers NPS 1/2 through 24 in Sch 40 and Sch 80. Unsupported schedules and sizes require custom dimensions. Confirm displayed effective dimensions against the drawing and actual preparation.
Uses inches, feet, and pounds. SAW quantities cover wire only, not flux. Gas and flux are not calculated.
Offset, angled, head, and other specialty nozzle geometries require documented path lengths and section areas supplied by the user.
Actual consumption can differ from geometric estimates; verify dimensions, efficiency, reserve, stock, package weights, and supplier availability.

Controlled professional resource

This original productivity and documentation tool complements—but does not reproduce or replace—governing codes, standards, specifications, approved procedures, or qualified professional judgment.
